Lubricated Rotary Screw Compressors (30 - 132 kW)
- Home
- Lubricated Rotary Screw Compressors (30 - 132 kW)

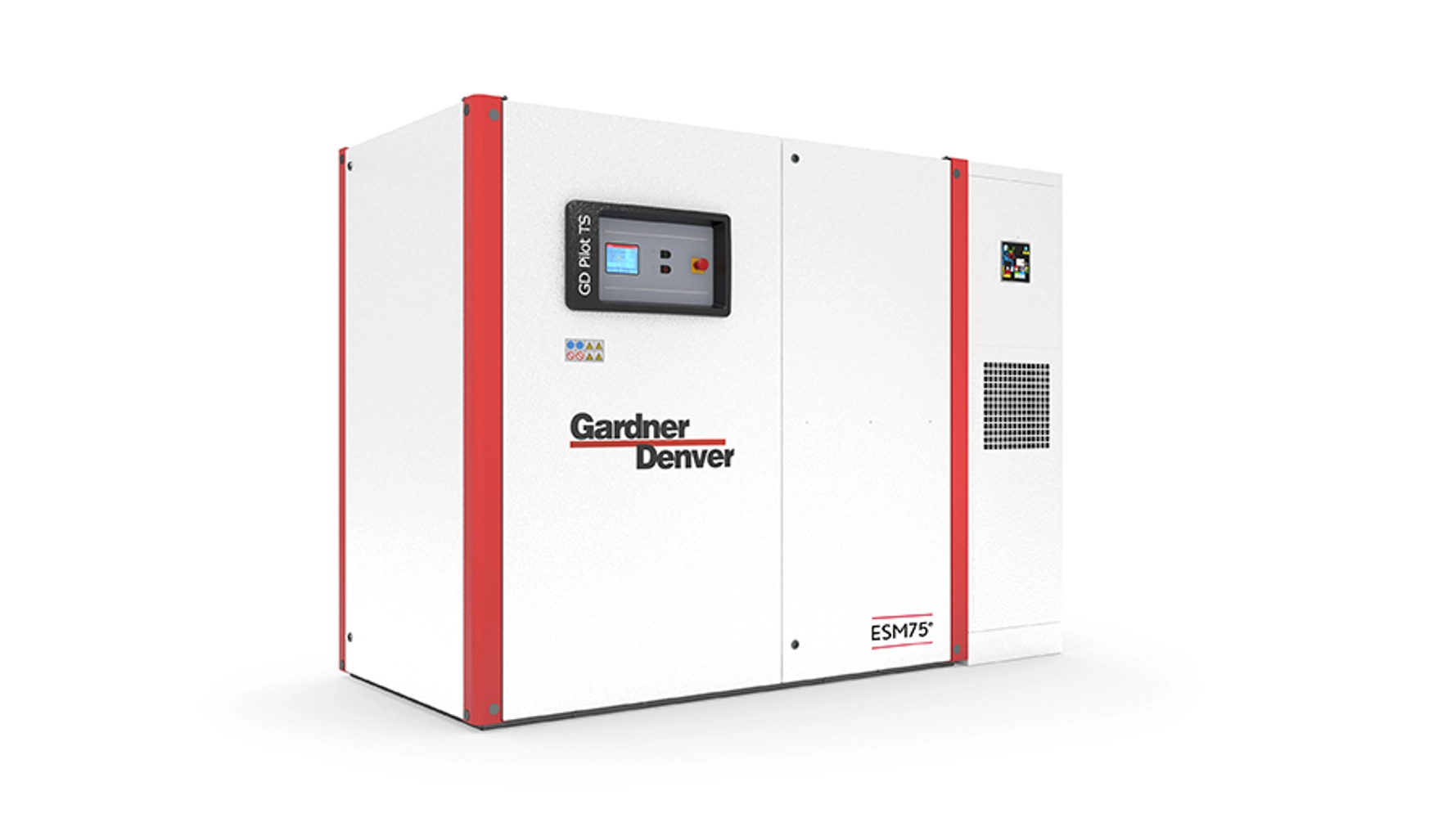

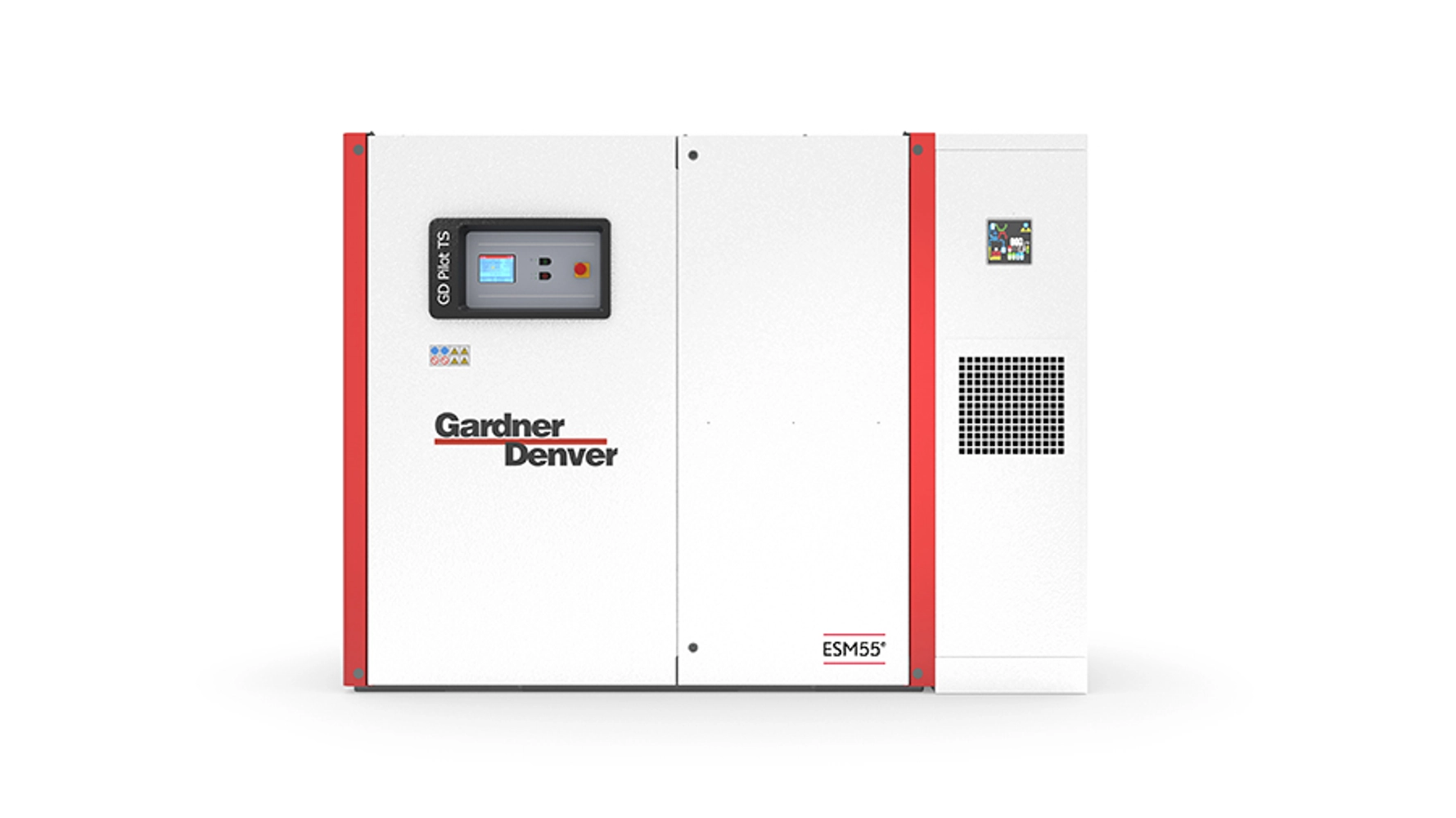

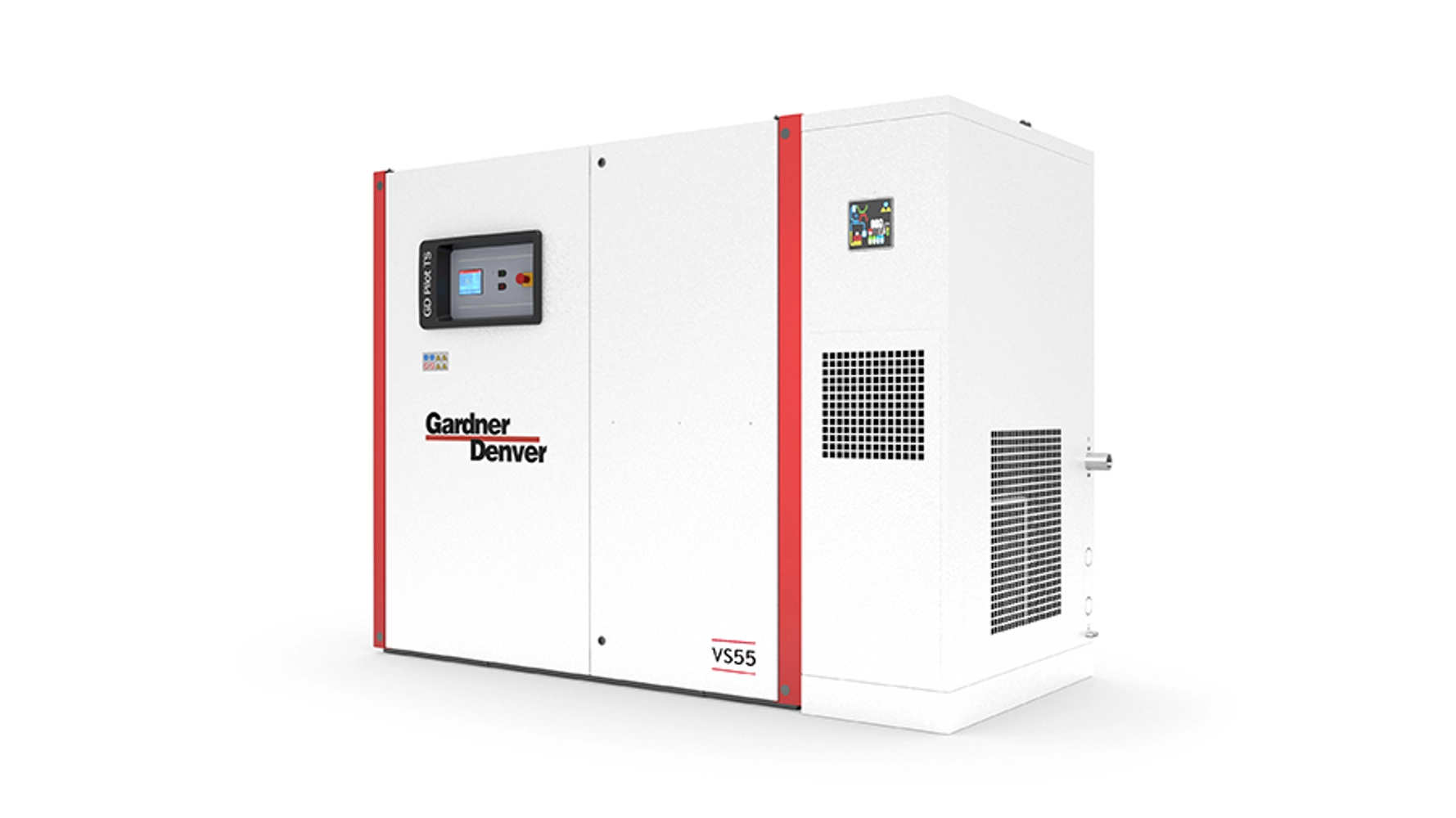

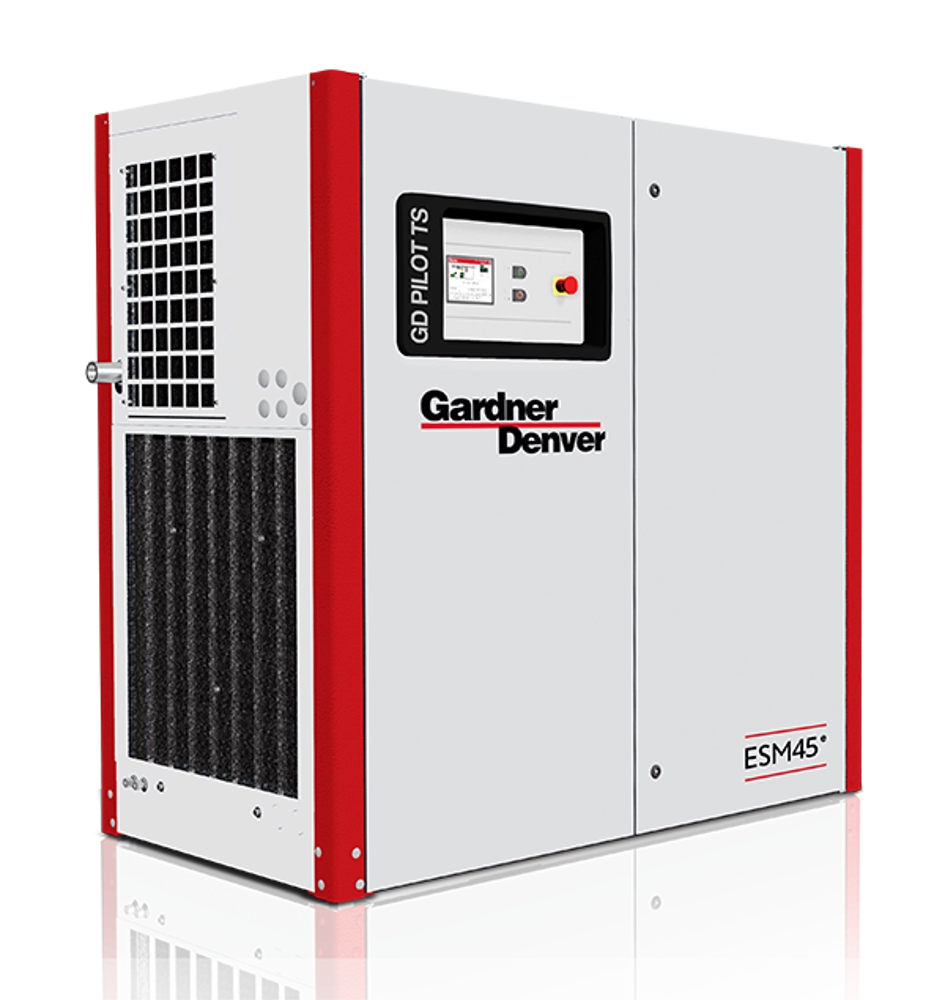

ESM 30e-45e & 30-132 and VS 30-132 compressors
The ESM(e) / VS 30-132 series is specifically designed to meet the demands for continuous 24-hour use and absolute uptime, as required in critical industrial processes. We are pleased to announce a range extension on our FourCore compressors – adding 110 and 132kW fixed and regulated speed units to an already outstanding range.
New FourCore compressor units
We are pleased to announce a range extension on our FourCore compressors – adding 110 and 132kW fixed and regulated speed units to an already outstanding range – combining best-in-class compressed air efficiency with a compact and sustainable design.
The new 110 and 132kW units offer outstanding energy efficiency and high flow rates allowing in some cases for smaller compressors to be installed, leading to less kW consumption, less noise, fewer parts, and of course less investment.

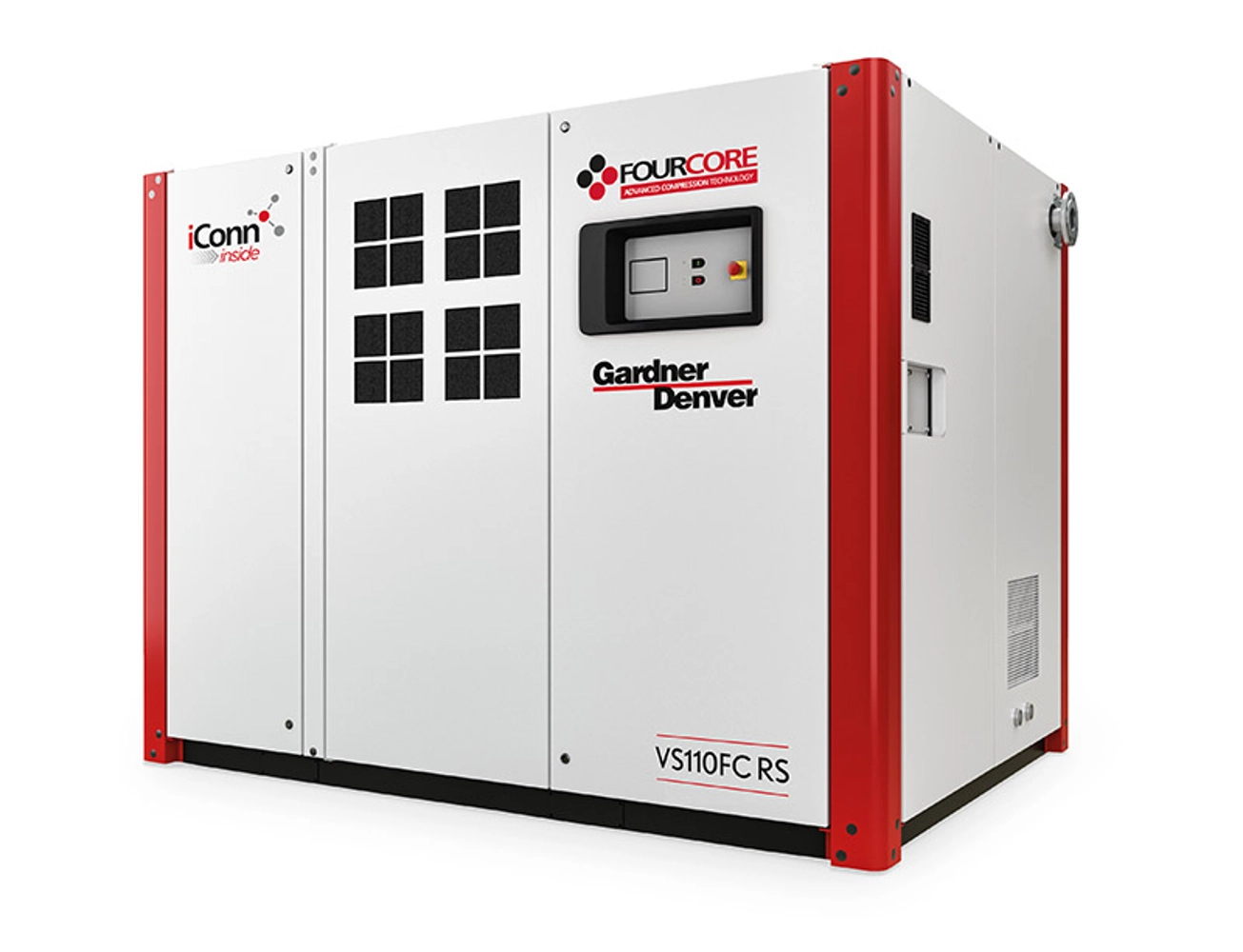

The new two-stage units at fixed ESM110/132FC and variable speed VS110-132FC offer up to 13% energy savings and up to 17% higher flow rate compared to the 1-stage machines in our range (ESM110/132e and VS110-132).
The new variants have all the benefits of a two-stage compressor featuring our innovative semi-integrated air end GD10-DS and IE4 electric motor as a standard. Available in both air-cooled and water-cooled models, as well as variable speed and fixed speed options, the compressors are supported by GD’s Protect 10 warranty.
Advanced Design
- Absolute reliability
- Maximized efficiency
- Small footprint
- Innovative Gardner Denver touchscreen control system
- Integrated heat recovery systems
- High efficiency fixed speed and variable speed models
- Innovative oil regulation valve
- High efficiency electric motor
- Automatic motor lubrication
- New improved premium efficiency airend
- iConn enabled

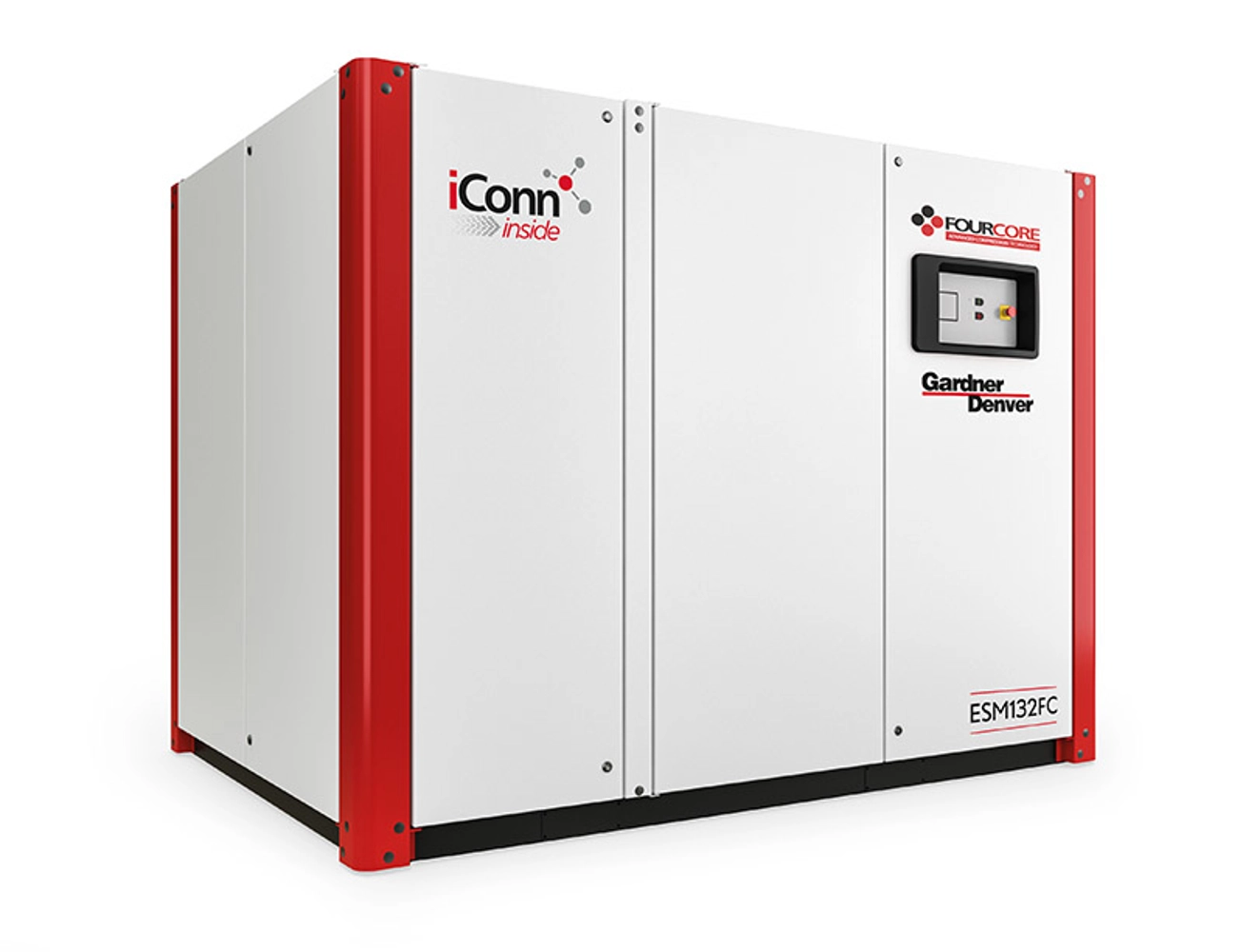

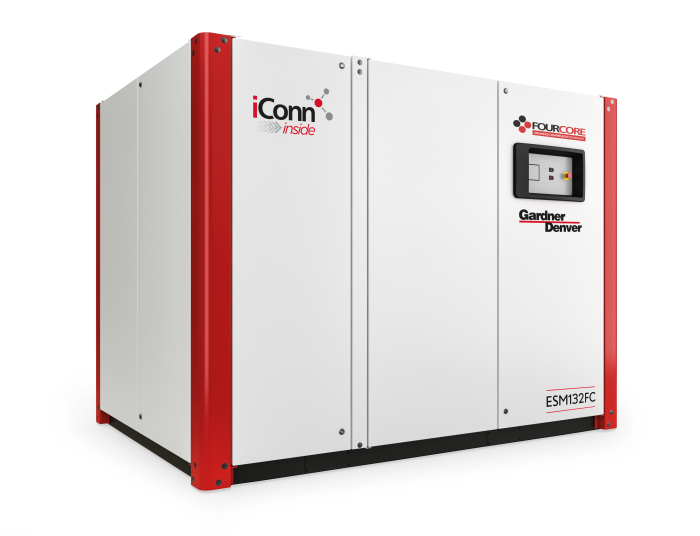

ESM132FC (FourCore) large screw compressor

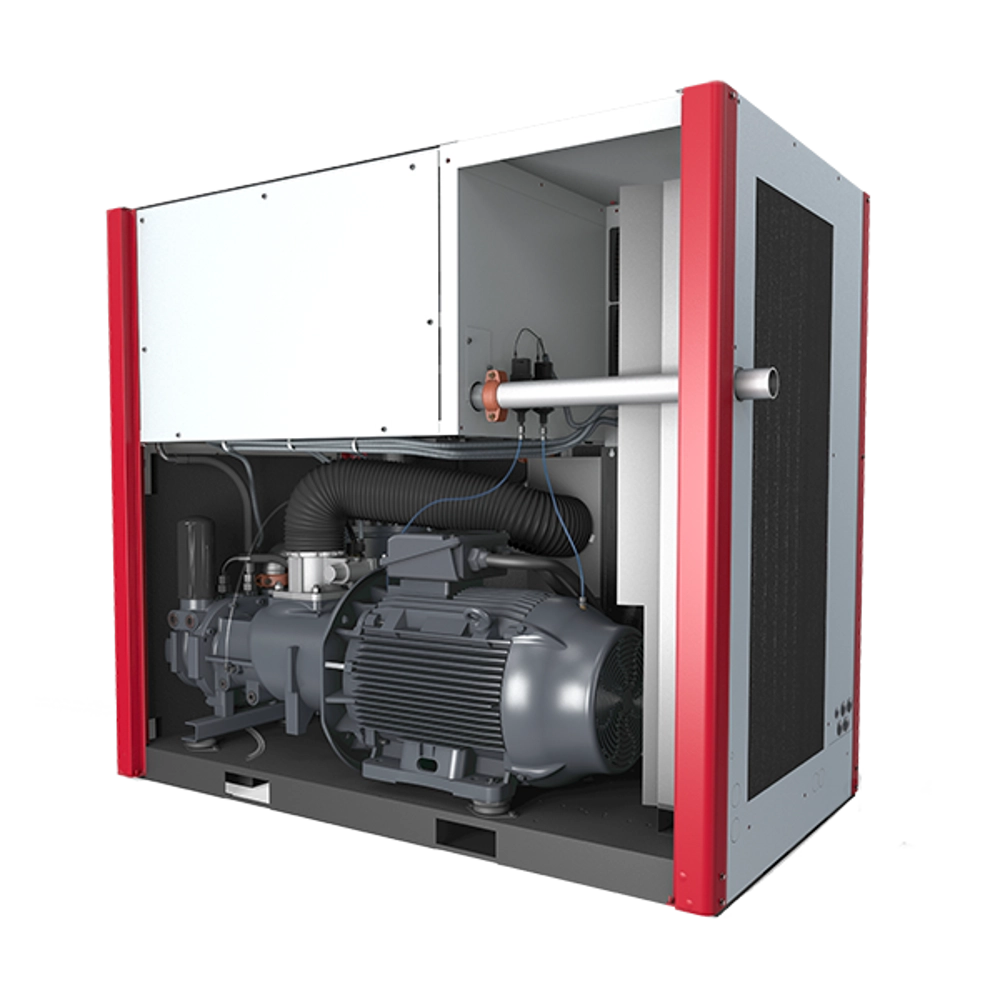

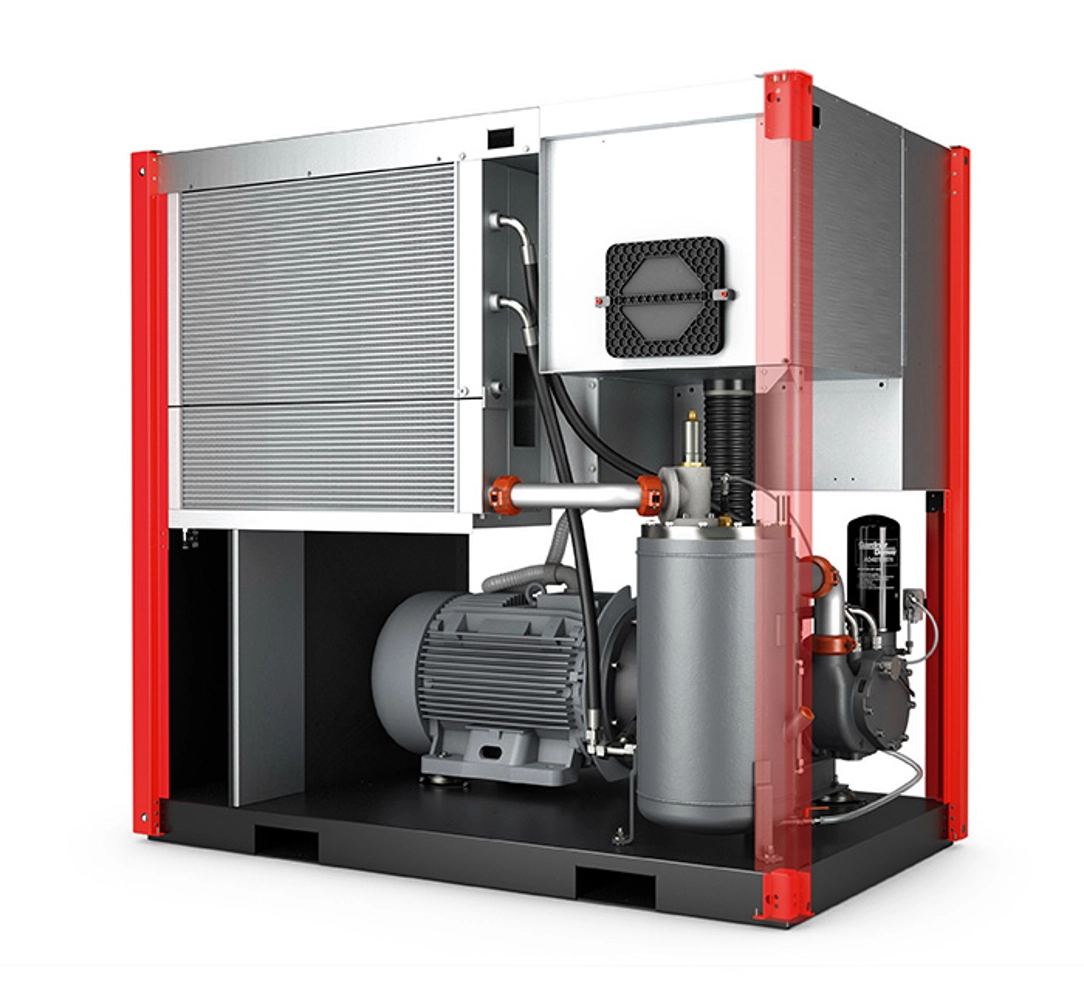

ESM large screw compressor without panels
One of the smallest footprints in the market of 2-stage oil-lubricated units
The core benefit of the new ESM/VS 110FC to ESM/VS 290FC range is that it delivers much greater efficiency than 1-stage compressors but comes in a German-engineered package that is the same size as it! Users in a variety of industries benefit from an amazing, space-saving design that offers next-level efficiency and performance.
A perfectly matched design of motor, direct drive & air end
The efficient motor/drive/air-end combination is designed to reduce the specific power, which benefits you in the form of energy cost savings. Additionally, Gardner Denver is using TEFC IP55, high-efficiency motors.
Premium efficiency air end
The high-output compression element with slow rotational speed reduces energy costs. In addition to this, the innovative design of the integrated oil filter and oil regulation valve ensures external hoses are reduced to a minimum, guaranteeing the highest levels of quality and reliability. The semi-integrated airend design with integrated oil filter and oil regulation valve means fewer external components and pipework, taking up less physical space, eliminating the risk of leakage, and easing maintenance.

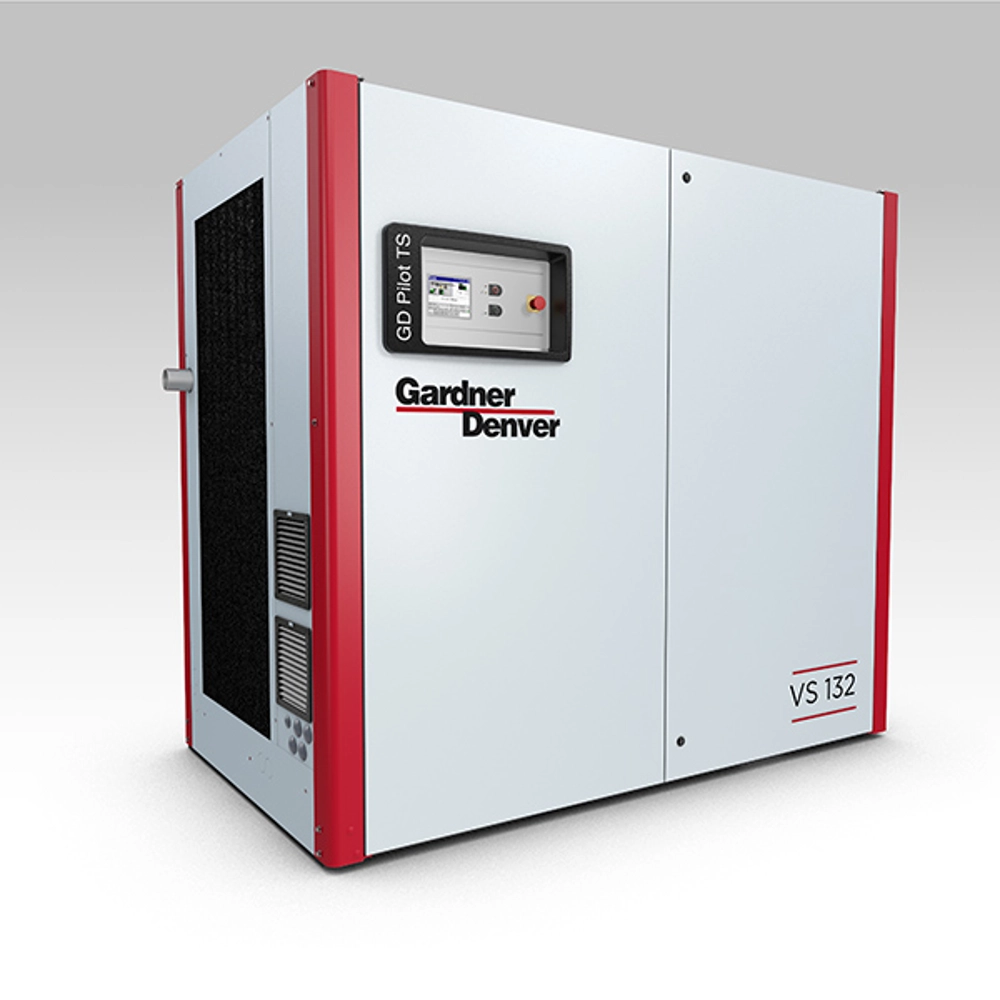

The VS variable speed compressor – one smart solution
The VS compressor is an efficient and versatile solution, even for the most demanding industrial applications, and carries all of the Gardner Denver features and benefits associated with reliable, easy-to-use operations and high efficiency.
Integrated heat recovery to save even more energy
The compressors are available with highly efficient heat recovery systems, which can be factory fitted or available as retrofit kits comprising all the necessary pipe-work and fittings.
Optimised cooling system
The radial fan concept represents quiet and efficient operation. Additionally, the peripheral speed means low noise and the power consumption is up to 50% lower than a comparable axial fan. Another advantage is the high residual thrust (stable curve) that allows the use of exhaust ducting with a pressure drop of up to 130 Pa. Also, the oversized aftercoolers used in the ESM / VS 30-132 series ensure optimum cooling and discharge temperature.
The synthetic efficiency advantage with Gardner Denver AEON™ 9000 SP lubricant as a standard
A unique synthetic lubricant designed specifically to maximise compressor efficiency and provide optimum lubricity.
- Extended drain intervals
- Energy savings as a result of optimum operation under demanding temperature conditions
- Make considerable savings on your energy bill
High efficiency electric motor
The compressors are equipped with a premium high-efficiency electric motor, which can be upgraded to an ultra-efficient energy-saving IE4 electric motor.
ESM132FC

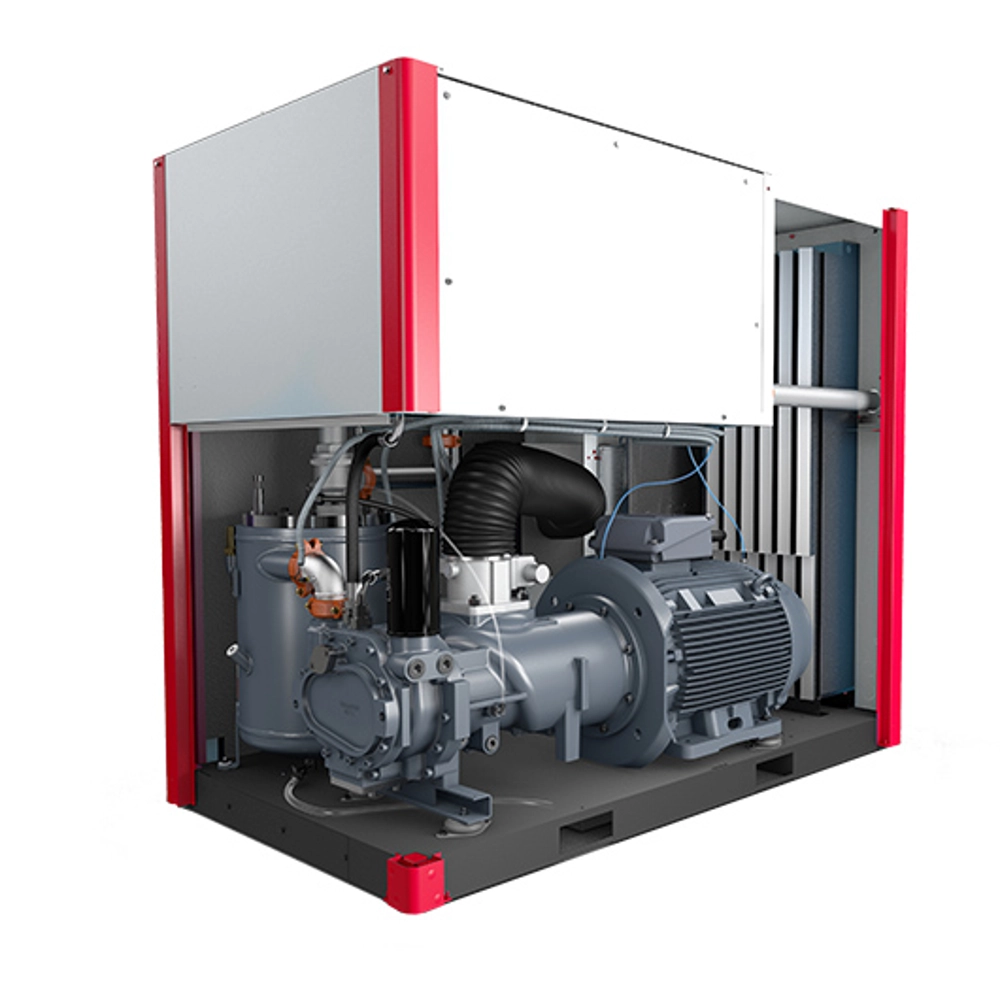

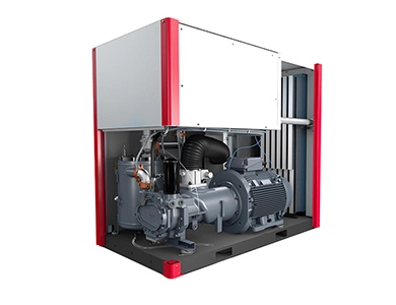

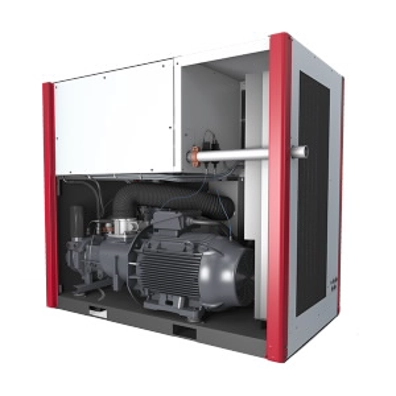

ESM large compressor without panels

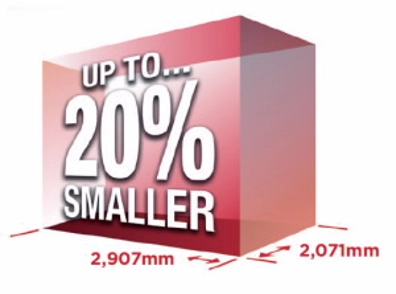

20 % smaller footprint

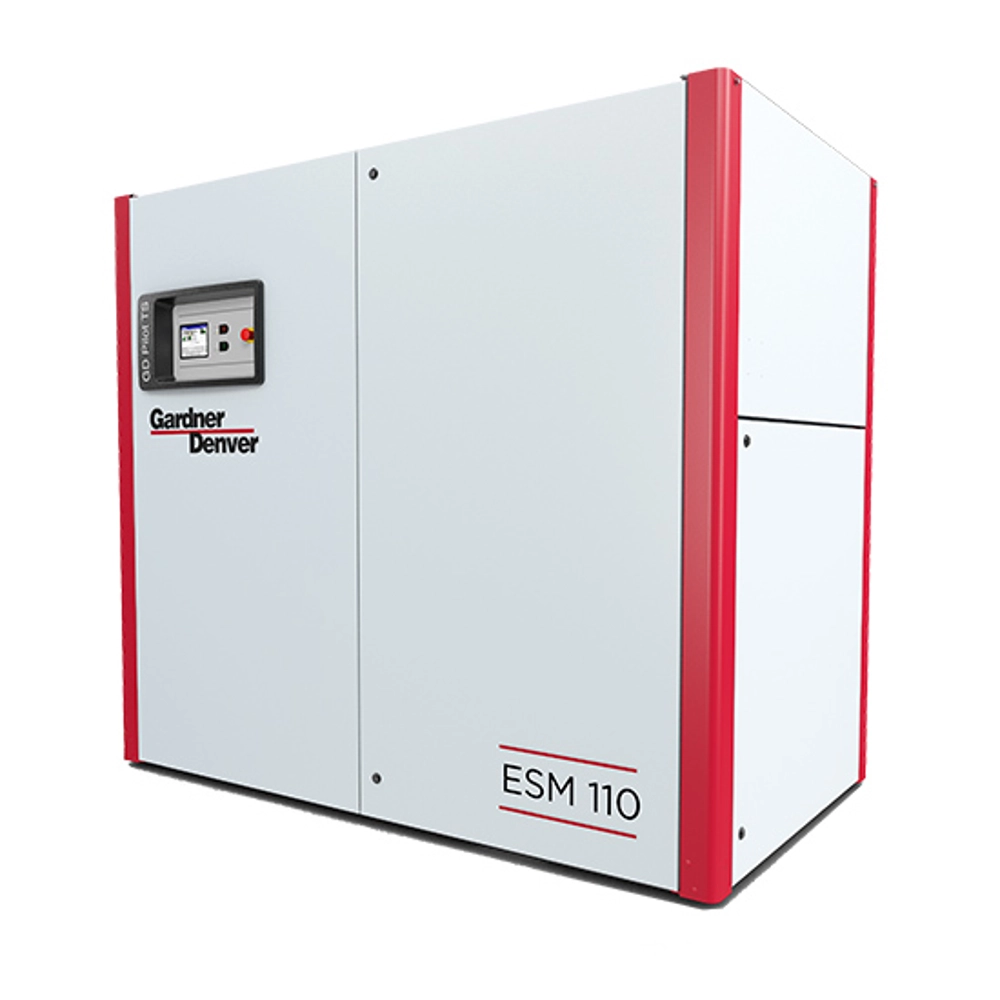

ESM110
IE4 motor efficiency
Compressor Performance Data
First Class Accessibility
The design of these packages assures the service points are readily accessible. The enclosure side doors are hinged and removable to allow complete access to all service points. The reduced number of moving parts also lowers maintenance costs.
Quality Service Management to ensure the efficiency of your air station
Our Total Commitment to Quality – Free of worry for Lubricated Screw Compressors, Oil-Free Compressors, and Refrigerant Dryers.
- Total commitment to quality and worry-free ownership
- Simple and free of charge extended warranty scheme
- All GD oil-free technologies covered
The best investment protection you can get
10 Years Warranty!
The Gardner Denver Protect 10 Warranty and Service programmes will protect you up to 44,000 hours/10 years 1.
It is one of the most generous warranties available in the industry, affording you total peace of mind.
Your benefits:
- The Protect 10 warranty is totally free to the compressor owner 2
- The Gardner Denver authorised service provider will deliver a guaranteed quality of service
- The Protect 10 service agreement underpinning the warranty will enable accurate maintenance, budgeting, and cost of ownership
- The use of genuine Gardner Denver parts and lubricants will maximise compressor life and efficiency
1 Warranty duration is limited to 6 years/44,000 hours on the whole package, 10 years/44,000 hours on the air end. Whichever is the soonest.
2 Subject to Terms & Conditions
Market leading warranty programs
GD protect 10 year warranty
